Chicago-Latrobe

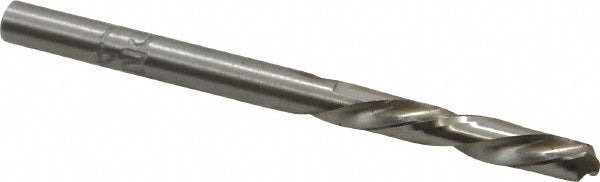

#24 High Speed Steel Screw Machine Drill Bit, 118° point - Chicago-Latrobe 49094
MFR# 49094Series 157L
$4.61List $5.91
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Chicago-Latrobe 49094 is a #24 High Speed Steel Screw Machine drill bit, 118° point. Suited for aluminum, copper, magnesium, slate, thermoplastic, wood. 1 flute length, 2-1/16 overall length. Series 157L.
Specifications
Coolant throughNo
Cutting directionLeft Hand
Drill bit diameter tolerance+0.0000 to -0.0007 in
Drill bit gradeGeneral Purpose
Drill bit size0.1520
Drill bit size range0.1500 to 0.2000
Drill bit size wire#24
Drill length typeScrew Machine
Drill point angle118
Flute length in1
Flute typeSpiral
Number of flutes2
Overall length in2-1/16
Point typeStandard
Primary workpiece materialAluminum; Copper; Magnesium; Slate; Thermoplastic; Wood
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsISO
Tool materialHigh Speed Steel
Tool performanceGeneral Purpose
Web configurationParallel
Web thinningWeb-Thinned
