Chicago-Latrobe

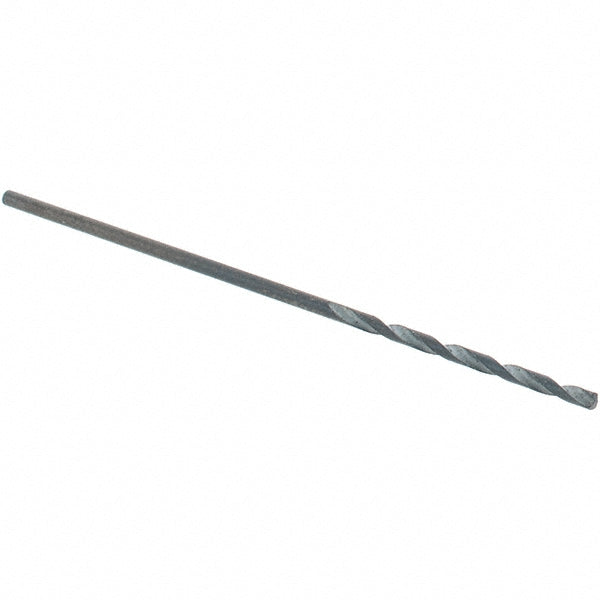

1/32" High Speed Steel Screw Machine Drill Bit, Coated, 135° point - Chicago-Latrobe 49202
MFR# 49202Series 159
$1.95List $2.46
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 12 — minimum order 12
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size1/32
Flutes2
CoatingCoated
Description
The Chicago-Latrobe 49202 is a 1/32" High Speed Steel Screw Machine drill bit with a Coated finish, 135° point. Suited for cast iron, steel. 1/2 flute length. Series 159.
Specifications
Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0005 in
Drill bit gradeHeavy Duty
Drill bit size in1/32
Drill bit size range0.0000 to 0.1000
Drill length typeScrew Machine
Drill point angle135
Flute length in1/2
Flute typeSpiral
Number of flutes2
Overall length1.3750
Point typeStandard
Primary workpiece materialCast Iron; Steel
Shank diameter (mm)0.80
Shank length0.8752
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 1897
Spiral typeRegular
StandardsISO
Tool materialHigh Speed Steel
Tool performanceHeavy-Duty
Web configurationTapered
