Chicago-Latrobe

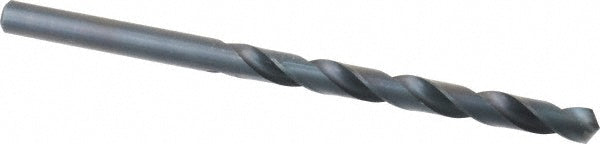

27/64" High Speed Steel Drill Bit, Coated, 118° point - Chicago-Latrobe 49727
MFR# 49727Series 120
$20.17List $25.42
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size27/64
CoatingCoated
Description
The Chicago-Latrobe 49727 is a 27/64" High Speed Steel drill bit with a Coated finish, 118° point. 4-5/8 flute length. Series 120.
Specifications
Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit gradeGeneral Purpose
Drill bit size in27/64
Drill point angle degrees118
Flute length in4-5/8
Flute typeSpiral
Material applicationAlloy Steel; Carbon Steel; Cast Iron
Overall length7-1/4
Point typeStandard
Shank diameter in27/64
Shank length2.6250
Shank typeStraight
Spiral typeRegular
Threaded shankNo
Tool materialHigh Speed Steel
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
