Chicago-Latrobe

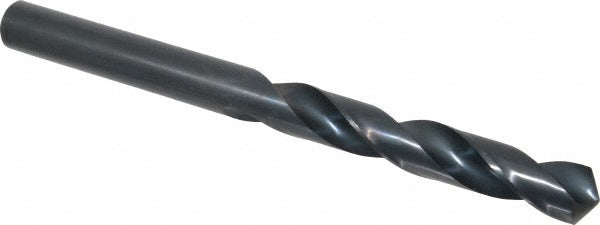

61/64" HSS Drill Bit, Black Oxide, 118° point - Chicago-Latrobe 49761
MFR# 49761Series 120
$114.10List $143.80
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size61/64
CoatingBlack Oxide
Description
The Chicago-Latrobe 49761 is a 61/64" HSS drill bit with a Black Oxide finish, 118° point. 6-3/8 flute length. Series 120.
Specifications
Coating finishBlack Oxide
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0012 in
Drill bit gradeGeneral Purpose
Drill bit size in61/64
Drill point angle degrees118
Flute length in6-3/8
Flute typeSpiral
Material applicationAlloy Steel; Carbon Steel; Cast Iron
Overall length11
Point typeStandard
Shank diameter in61/64
Shank length4.6250
Shank typeStraight-Cylindrical
Spiral typeRegular
Threaded shankNo
Tool materialHSS
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
