Chicago-Latrobe

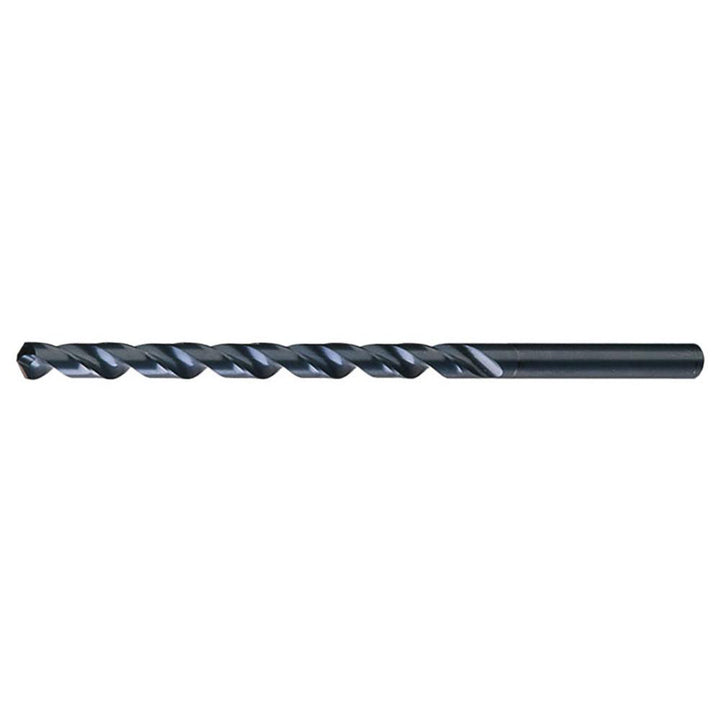

0.3906" High Speed Steel Drill Bit, Oxide, 118° point - Chicago-Latrobe 50536
MFR# 50536Series 120X
$36.97List $47.42
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingOxide
Description
The Chicago-Latrobe 50536 is a 0.3906" High Speed Steel drill bit with a Oxide finish, 118° point. Suited for cast iron, steel. 7-1/2 flute length, 10 overall length. Series 120X.
Specifications
Coating finishOxide
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit gradeGeneral Purpose
Drill bit size0.3906
Drill point angle118
Flute length in7-1/2
Flute typeSpiral
Number of flutes2
Overall length in10
Point typeNotched
Primary workpiece materialCast Iron; Steel
Shank diameter0.3906
Shank length5.0000
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsCalifornia PROP 65
Tool applicationLong Reach Drilling
Tool materialHigh Speed Steel
Web configurationTapered
Web thinningWeb-Thinned
