Chicago-Latrobe

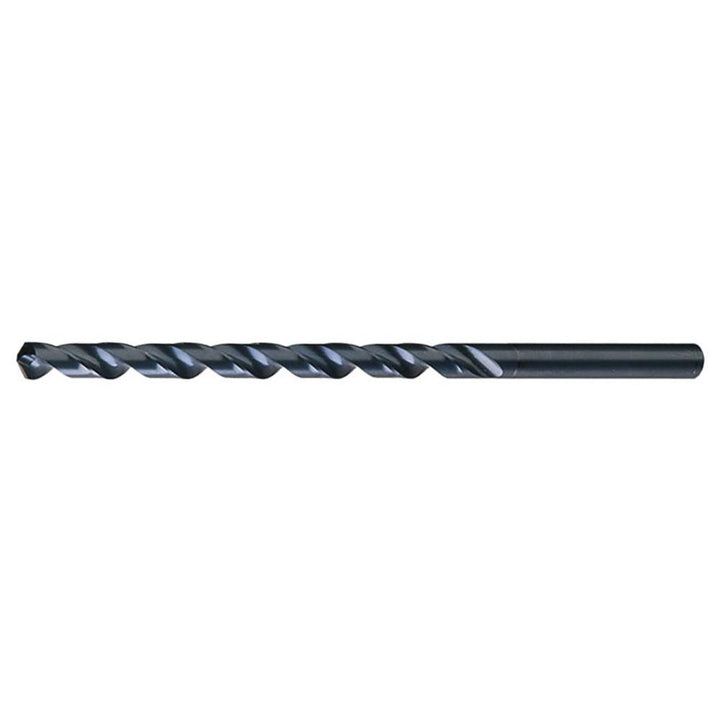

0.2656" High Speed Steel Drill Bit, Oxide, 118° point - Chicago-Latrobe 50736
MFR# 50736Series 120X
$31.33List $39.48
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingOxide
Description
The Chicago-Latrobe 50736 is a 0.2656" High Speed Steel drill bit with a Oxide finish, 118° point. Suited for cast iron, steel. 7-1/2 flute length, 10 overall length. Series 120X.
Specifications
Coating finishOxide
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit gradeGeneral Purpose
Drill bit size0.2656
Drill point angle118
Flute length in7-1/2
Flute typeSpiral
Number of flutes2
Overall length in10
Point typeNotched
Primary workpiece materialCast Iron; Steel
Shank diameter0.2656
Shank length5.0000
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsCalifornia PROP 65
Tool applicationLong Reach Drilling
Tool materialHigh Speed Steel
Web configurationTapered
Web thinningWeb-Thinned
