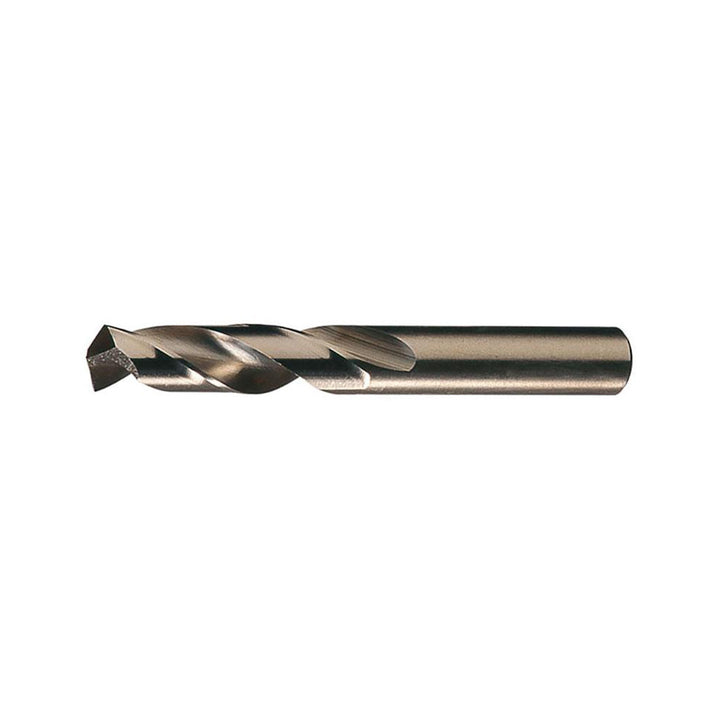

9/64" Cobalt Screw Machine Drill Bit, Coated, 135° point - Chicago-Latrobe 50806

Chicago-Latrobe

9/64" Cobalt Screw Machine Drill Bit, Coated, 135° point - Chicago-Latrobe 50806

MFR# 50806Series 559

$2.79List $3.58 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size9/64
Flutes2
CoatingCoated

Description

The Chicago-Latrobe 50806 is a 9/64" Cobalt Screw Machine drill bit with a Coated finish, 135° point. Suited for cast iron, steel. 15/16 flute length, 1-15/16 overall length. Series 559.

Specifications

Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0007 in
Drill bit gradeHeavy Duty
Drill bit size in9/64
Drill bit size range0.1000 to 0.1500
Drill length typeScrew Machine
Drill point angle135
Flute length in15/16
Flute typeSpiral
Material gradeM42
Number of flutes2
Overall length in1-15/16
Point typeSplit
Primary workpiece materialCast Iron; Steel
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsISO
Tool materialCobalt
Tool performanceHeavy-Duty
Web configurationParallel
Web thinningWeb-Thinned
