Chicago-Latrobe

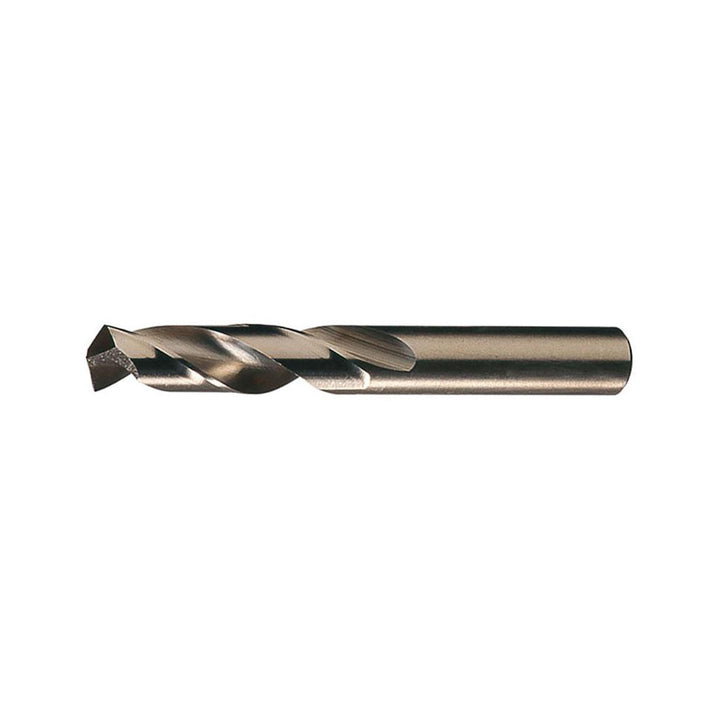

15/32" Cobalt Screw Machine Drill Bit, Coated, 135° point - Chicago-Latrobe 50827
MFR# 50827Series 559
$16.34List $20.59
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size15/32
Flutes2
CoatingCoated
Description
The Chicago-Latrobe 50827 is a 15/32" Cobalt Screw Machine drill bit with a Coated finish, 135° point. Suited for cast iron, steel. 2-1/8 flute length, 3-5/8 overall length. Series 559.
Specifications
Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit gradeHeavy Duty
Drill bit size in15/32
Drill bit size range0.4500 to 0.5000
Drill length typeScrew Machine
Drill point angle135
Flute length in2-1/8
Flute typeSpiral
Material gradeM42
Number of flutes2
Overall length in3-5/8
Point typeSplit
Primary workpiece materialCast Iron; Steel
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsISO
Tool materialCobalt
Tool performanceHeavy-Duty
Web configurationParallel
Web thinningWeb-Thinned
