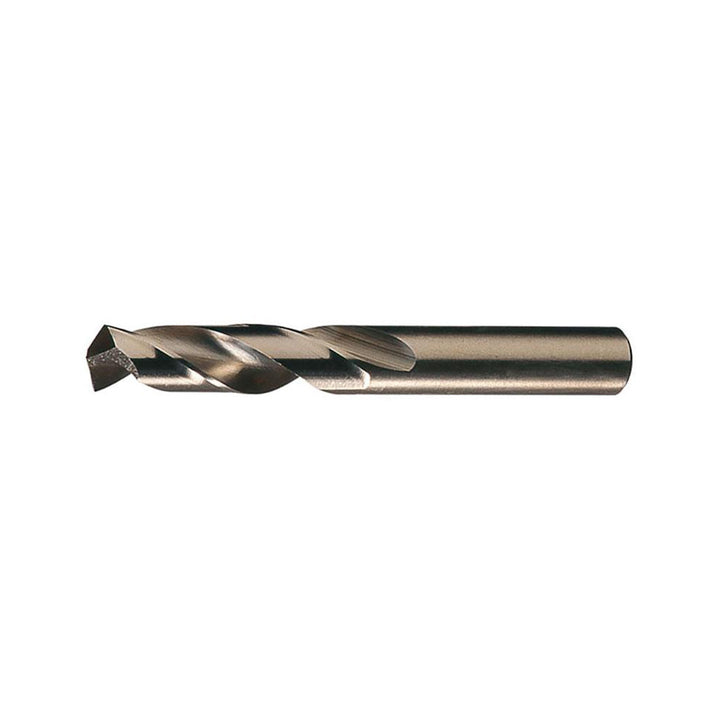

1/2" Cobalt Screw Machine Drill Bit, Coated, 135° point - Chicago-Latrobe 50829

Chicago-Latrobe

1/2" Cobalt Screw Machine Drill Bit, Coated, 135° point - Chicago-Latrobe 50829

MFR# 50829Series 559

$17.79List $22.81 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size1/2
Flutes2
CoatingCoated

Description

The Chicago-Latrobe 50829 is a 1/2" Cobalt Screw Machine drill bit with a Coated finish, 135° point. Suited for cast iron, steel. 2-1/4 flute length, 3-3/4 overall length. Series 559.

Specifications

Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit gradeHeavy Duty
Drill bit size in1/2
Drill bit size range0.5000 to 0.6000
Drill length typeScrew Machine
Drill point angle135
Flute length in2-1/4
Flute typeSpiral
Material gradeM42
Number of flutes2
Overall length in3-3/4
Point typeSplit
Primary workpiece materialCast Iron; Steel
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsISO
Tool materialCobalt
Tool performanceHeavy-Duty
Web configurationParallel
Web thinningWeb-Thinned
