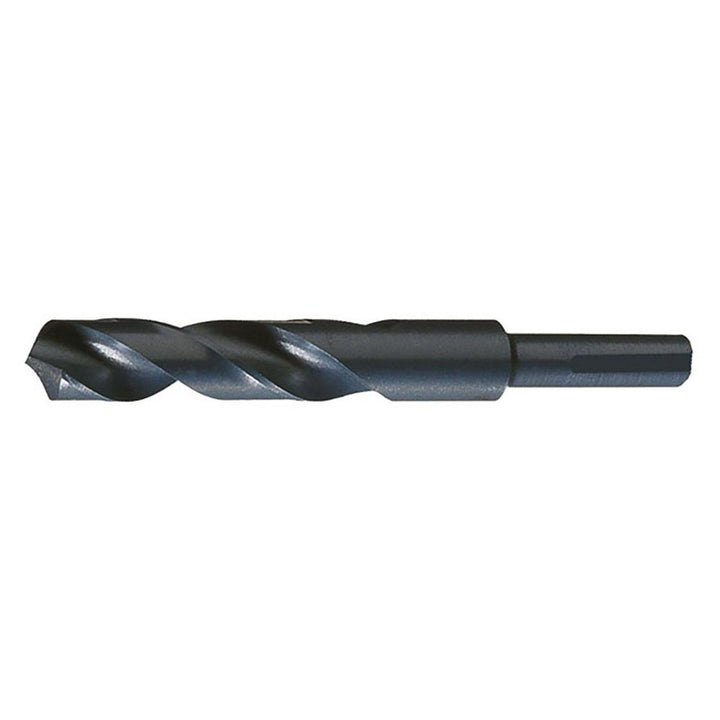

51/64" High Speed Steel Reduced Shank Drill Bit, Coated, 118° point - Chicago-Latrobe 52451

Chicago-Latrobe

51/64" High Speed Steel Reduced Shank Drill Bit, Coated, 118° point - Chicago-Latrobe 52451

MFR# 52451Series 190F

$42.55List $53.63 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size51/64
Flutes2
CoatingCoated

Description

The Chicago-Latrobe 52451 is a 51/64" High Speed Steel Reduced Shank drill bit with a Coated finish, 118° point. Suited for wood. 3-1/8 flute length, 6 overall length. Series 190F.

Specifications

Coating finishCoated
CoolantNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0012 in
Drill bit size in51/64
Drill length typeReduced Shank
Drill point angle118
Flute length in3-1/8
Flute typeSpiral
Number of flats3
Number of flutes2
Overall length in6
Point typeSplit
Primary workpiece materialWood
Secondary workpiece materialAlloy Steel; Carbon Steel; Cast Iron; Wood
Shank diameter in1/2
Shank length2.2500
Shank typeWeldon
Spiral typeRegular
Tool applicationPortable Drilling
Tool materialHigh Speed Steel
Tool performanceGeneral Purpose
