Chicago-Latrobe

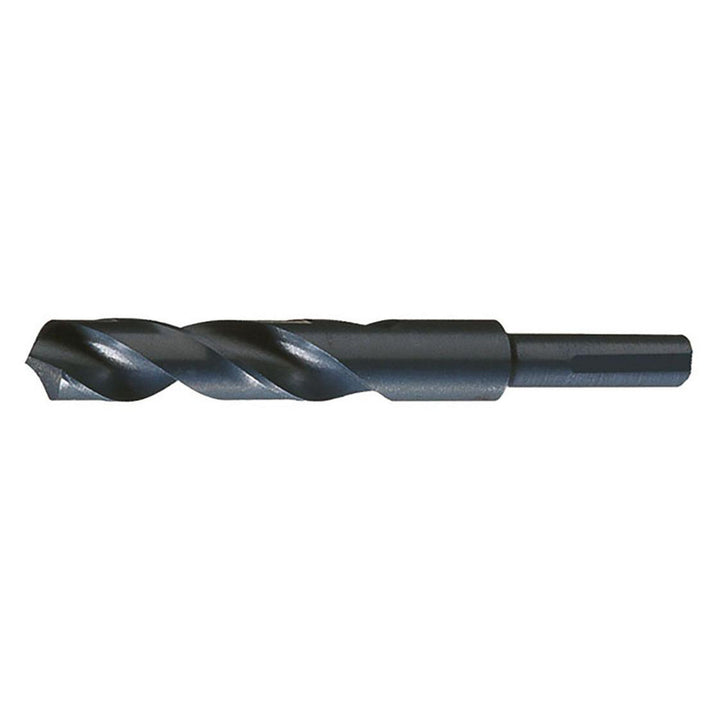

1-17/64" High Speed Steel Reduced Shank Drill Bit, Coated, 118° point - Chicago-Latrobe 52481
MFR# 52481Series 190F
$154.28List $194.44
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size1-17/64
Flutes2
CoatingCoated
Description
The Chicago-Latrobe 52481 is a 1-17/64" High Speed Steel Reduced Shank drill bit with a Coated finish, 118° point. Suited for wood. 3-1/8 flute length, 6 overall length. Series 190F.
Specifications
Coating finishCoated
CoolantNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0015 in
Drill bit size in1-17/64
Drill length typeReduced Shank
Drill point angle118
Flute length in3-1/8
Flute typeSpiral
Number of flats3
Number of flutes2
Overall length in6
Point typeStandard
Primary workpiece materialWood
Secondary workpiece materialAlloy Steel; Carbon Steel; Cast Iron; Wood
Shank diameter in1/2
Shank length2.2500
Shank typeWeldon
Spiral typeRegular
Tool applicationPortable Drilling
Tool materialHigh Speed Steel
Tool performanceGeneral Purpose
