Chicago-Latrobe

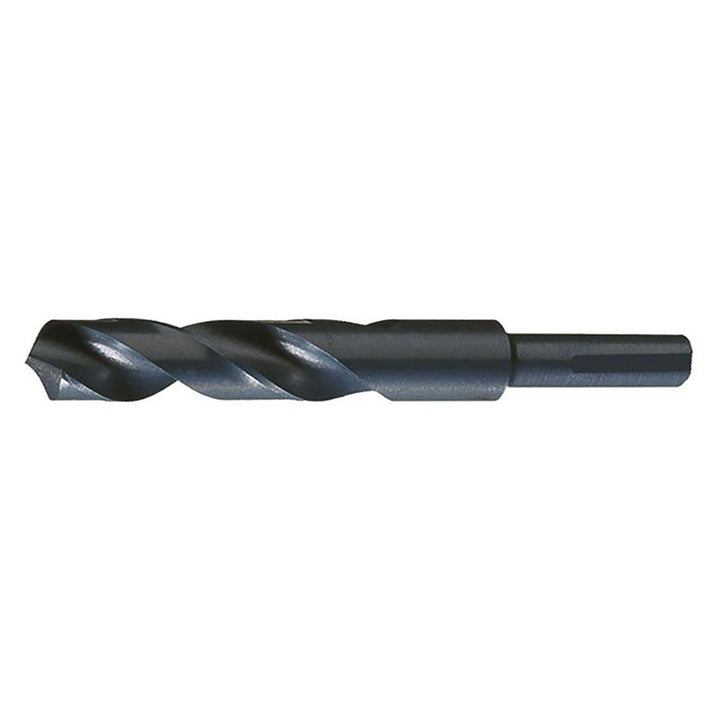

1-31/64" High Speed Steel Reduced Shank Drill Bit, Coated, 118° point - Chicago-Latrobe 52495
MFR# 52495Series 190F
$199.74List $256.18
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size1-31/64
Flutes2
CoatingCoated
Description
The Chicago-Latrobe 52495 is a 1-31/64" High Speed Steel Reduced Shank drill bit with a Coated finish, 118° point. Suited for wood. 3-1/8 flute length, 6 overall length. Series 190F.
Specifications
Coating finishCoated
CoolantNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0015 in
Drill bit size in1-31/64
Drill length typeReduced Shank
Drill point angle118
Flute length in3-1/8
Flute typeSpiral
Number of flats3
Number of flutes2
Overall length in6
Point typeStandard
Primary workpiece materialWood
Secondary workpiece materialAlloy Steel; Carbon Steel; Cast Iron; Wood
Shank diameter in1/2
Shank length2.2500
Shank typeWeldon
Spiral typeRegular
Tool applicationPortable Drilling
Tool materialHigh Speed Steel
Tool performanceGeneral Purpose
