Chicago-Latrobe

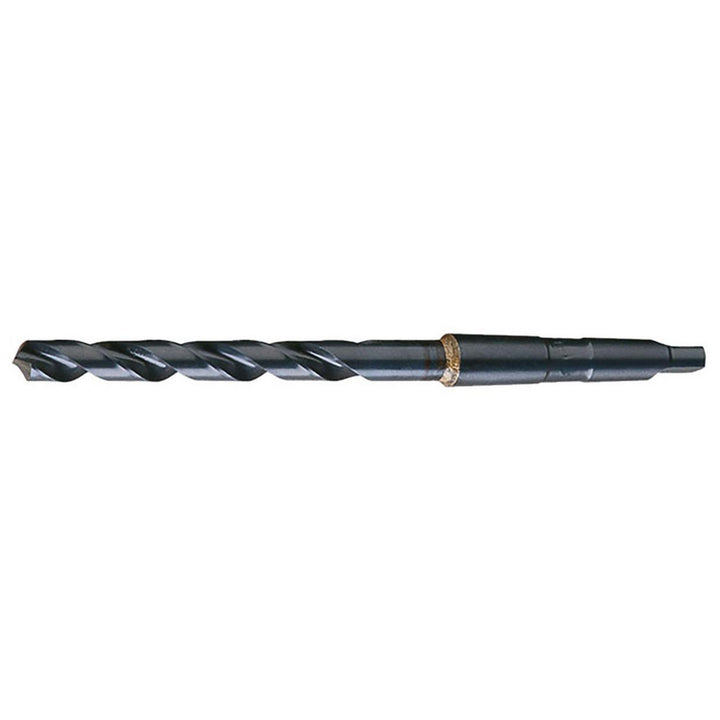

1" High Speed Steel Drill Bit, Oxide, 118° point - Chicago-Latrobe 53164
MFR# 53164Series 110
$95.51List $122.49
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size1
CoatingOxide
Description
The Chicago-Latrobe 53164 is a 1" High Speed Steel drill bit with a Oxide finish, 118° point. 6-3/8 flute length, 11 overall length. Series 110.
Specifications
Coating finishOxide
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0012 in
Drill bit size in1
Drill point angle118
Flute length in6-3/8
Flute typeSpiral
Overall length in11
Point typeStandard
Shank taper designation3MT
Spiral typeRegular
Tool materialHigh Speed Steel
Tool performanceGeneral Purpose
Web thinningWeb-Thinned
