Chicago-Latrobe

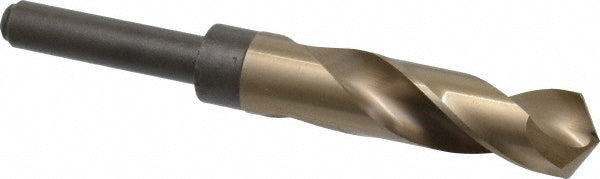

53/64" Cobalt Reduced Shank Drill Bit, Coated, 118° point - Chicago-Latrobe 53453
MFR# 53453Series 190C
$75.69List $97.07
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size53/64
Flutes2
CoatingCoated
Description
The Chicago-Latrobe 53453 is a 53/64" Cobalt Reduced Shank drill bit with a Coated finish, 118° point. Suited for cast iron, steel. 3-1/8 flute length, 6 overall length. Series 190C.
Specifications
Coating finishCoated
CoolantNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0012 in
Drill bit size in53/64
Drill length typeReduced Shank
Drill point angle118
Flute length in3-1/8
Flute typeSpiral
Number of flutes2
Overall length in6
Point typeSplit
Primary workpiece materialCast Iron; Steel
Secondary workpiece materialAlloy Steel; Carbon Steel; Cast Iron
Shank diameter in1/2
Shank length2.2500
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool applicationPortable Drilling
Tool materialCobalt
Tool performanceGeneral Purpose
