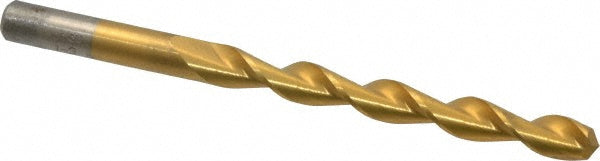

Letter O High Speed Steel Drill Bit, TiN, 135° point - Chicago-Latrobe 53882

Chicago-Latrobe

Letter O High Speed Steel Drill Bit, TiN, 135° point - Chicago-Latrobe 53882

MFR# 53882Series 150DHT

$16.20List $20.78 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingTiN

Description

The Chicago-Latrobe 53882 is a Letter O High Speed Steel drill bit with a TiN finish, 135° point. Suited for steel alloy. 3-3/16 flute length, 4-1/2 overall length. Series 150DHT.

Specifications

Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0010 to 0.0000 in
Drill bit finish coatingTitanium Nitride
Drill bit gradeHeavy Duty
Drill bit materialHigh Speed Steel
Drill bit size0.3160
Drill bit size letterO
Drill bit size range0.3000 - 0.3500
Drill point angle degrees135
Flute length in3-3/16
Flute typeParabolic
Number of flutes2
Overall length in4-1/2
Point typeSplit
Primary workpiece materialSteel Alloy
Shank diameter0.3160
Shank length1.3125
Shank typeStraight-Cylindrical
Web configurationTapered
Web thinningWeb-Thinned
