Chicago-Latrobe

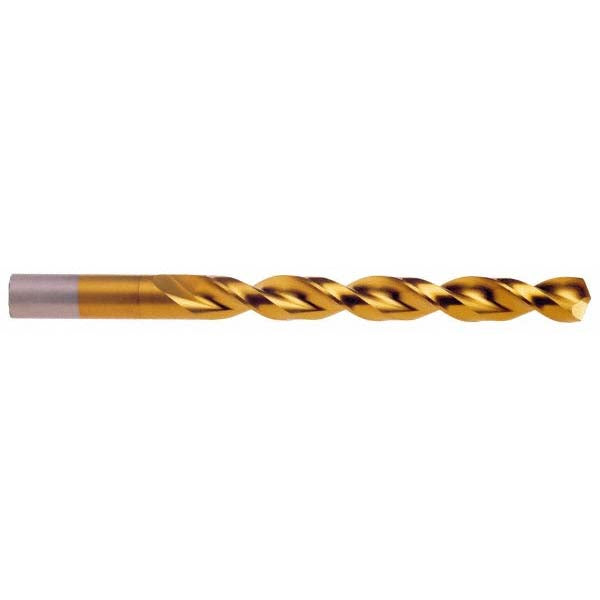

29/64" High Speed Steel Drill Bit, TiN, 135° point - Chicago-Latrobe 53922
MFR# 53922Series 150DHT
$25.44List $32.06
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size29/64
Flutes2
CoatingTiN
Description
The Chicago-Latrobe 53922 is a 29/64" High Speed Steel drill bit with a TiN finish, 135° point. Suited for steel alloy. 4-3/16 flute length, 5-5/8 overall length. Series 150DHT.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0010 to 0.0000 in
Drill bit finish coatingTitanium Nitride
Drill bit gradeHeavy Duty
Drill bit materialHigh Speed Steel
Drill bit size in29/64
Drill bit size range0.4000 - 0.5000
Drill point angle degrees135
Flute length in4-3/16
Flute typeParabolic
Number of flutes2
Overall length in5-5/8
Point typeSplit
Primary workpiece materialSteel Alloy
Shank diameter in29/64
Shank length1.4375
Shank typeStraight-Cylindrical
Web configurationTapered
Web thinningWeb-Thinned
