Chicago-Latrobe

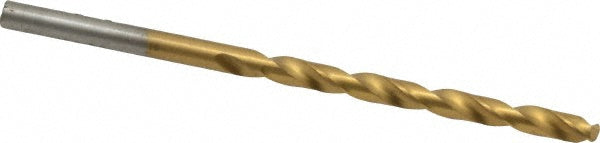

9/64" Cobalt Drill Bit, TiN, 135° point - Chicago-Latrobe 54051
MFR# 54051Series 2550
$4.57List $5.76
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size9/64
Flutes2
CoatingTiN
Description
The Chicago-Latrobe 54051 is a 9/64" Cobalt drill bit with a TiN finish, 135° point. Suited for stainless steel, steel. 1-3/4 flute length, 2-7/8 overall length. Series 2550.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0007 to 0.0000 in
Drill bit finish coatingTitanium Nitride
Drill bit gradeHeavy Duty
Drill bit materialCobalt
Drill bit size in9/64
Drill bit size range0.1000 - 0.1500
Drill point angle degrees135
Flute length in1-3/4
Flute typeSpiral
Material gradeM42
Number of flutes2
Overall length in2-7/8
Point typeSplit
Primary workpiece materialStainless Steel; Steel
Shank diameter in9/64
Shank length1.1250
Shank typeStraight-Cylindrical
Specification designationNAS
Specification numberNAS 907
Spiral typeRegular
StandardsDIN 338; NAS 907 Type J
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
