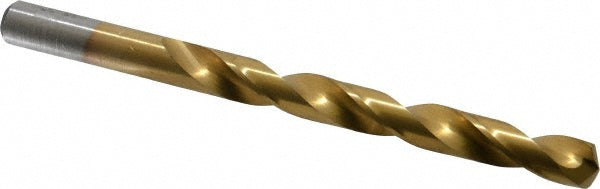

11/32" Cobalt Drill Bit, TiN, 135° point - Chicago-Latrobe 54064

Chicago-Latrobe

11/32" Cobalt Drill Bit, TiN, 135° point - Chicago-Latrobe 54064

MFR# 54064Series 2550

$18.07List $23.17 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size11/32
Flutes2
CoatingTiN

Description

The Chicago-Latrobe 54064 is a 11/32" Cobalt drill bit with a TiN finish, 135° point. Suited for stainless steel, steel. 3-7/16 flute length, 4-3/4 overall length. Series 2550.

Specifications

Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0010 to 0.0000 in
Drill bit finish coatingTitanium Nitride
Drill bit gradeHeavy Duty
Drill bit materialCobalt
Drill bit size in11/32
Drill bit size range0.3000 - 0.3500
Drill point angle degrees135
Flute length in3-7/16
Flute typeSpiral
Material gradeM42
Number of flutes2
Overall length in4-3/4
Point typeSplit
Primary workpiece materialStainless Steel; Steel
Shank diameter in11/32
Shank length1.3125
Shank typeStraight-Cylindrical
Specification designationNAS
Specification numberNAS 907
Spiral typeRegular
StandardsDIN 338; NAS 907 Type J
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
