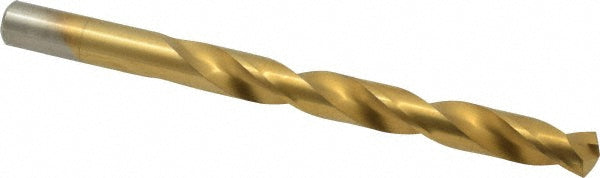

7/16" Cobalt Drill Bit, TiN, 135° point - Chicago-Latrobe 54068

Chicago-Latrobe

7/16" Cobalt Drill Bit, TiN, 135° point - Chicago-Latrobe 54068

MFR# 54068Series 2550

$25.06List $32.14 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size7/16
Flutes2
CoatingTiN

Description

The Chicago-Latrobe 54068 is a 7/16" Cobalt drill bit with a TiN finish, 135° point. Suited for stainless steel, steel. 4-1/16 flute length, 5-1/2 overall length. Series 2550.

Specifications

Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0010 to 0.0000 in
Drill bit finish coatingTitanium Nitride
Drill bit gradeHeavy Duty
Drill bit materialCobalt
Drill bit size in7/16
Drill bit size range0.4000 - 0.5000
Drill point angle degrees135
Flute length in4-1/16
Flute typeSpiral
Material gradeM42
Number of flutes2
Overall length in5-1/2
Point typeSplit
Primary workpiece materialStainless Steel; Steel
Shank diameter in7/16
Shank length1.4375
Shank typeStraight-Cylindrical
Specification designationNAS
Specification numberNAS 907
Spiral typeRegular
StandardsDIN 338; NAS 907 Type J
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
