Chicago-Latrobe

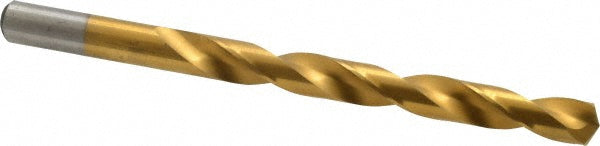

Letter U Cobalt Drill Bit, TiN, 135° point - Chicago-Latrobe 54120
MFR# 54120Series 2550
$21.73List $27.39
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiN
Description
The Chicago-Latrobe 54120 is a Letter U Cobalt drill bit with a TiN finish, 135° point. Suited for stainless steel, steel. 3-5/8 flute length, 5 overall length. Series 2550.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0010 to 0.0000 in
Drill bit finish coatingTitanium Nitride
Drill bit gradeHeavy Duty
Drill bit materialCobalt
Drill bit size0.3680
Drill bit size letterU
Drill bit size range0.3500 - 0.4000
Drill point angle degrees135
Flute length in3-5/8
Flute typeSpiral
Material gradeM42
Number of flutes2
Overall length in5
Point typeSplit
Primary workpiece materialStainless Steel; Steel
Shank diameter0.3680
Shank length1.3750
Shank typeStraight-Cylindrical
Specification designationNAS
Specification numberNAS 907
Spiral typeRegular
StandardsDIN 338; NAS 907 Type J
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
