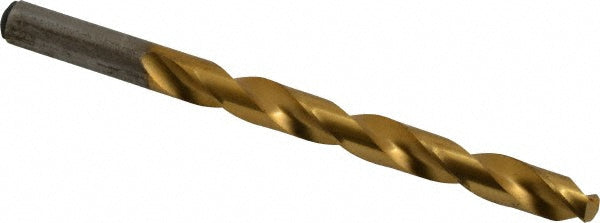

Letter Y Cobalt Drill Bit, TiN, 135° point - Chicago-Latrobe 54124

Chicago-Latrobe

Letter Y Cobalt Drill Bit, TiN, 135° point - Chicago-Latrobe 54124

MFR# 54124Series 2550

$24.94List $31.99 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingTiN

Description

The Chicago-Latrobe 54124 is a Letter Y Cobalt drill bit with a TiN finish, 135° point. Suited for stainless steel, steel. 3-7/8 flute length, 5-1/4 overall length. Series 2550.

Specifications

Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0010 to 0.0000 in
Drill bit finish coatingTitanium Nitride
Drill bit gradeHeavy Duty
Drill bit materialCobalt
Drill bit size0.4040
Drill bit size letterY
Drill bit size range0.4000 - 0.5000
Drill point angle degrees135
Flute length in3-7/8
Flute typeSpiral
Material gradeM42
Number of flutes2
Overall length in5-1/4
Point typeSplit
Primary workpiece materialStainless Steel; Steel
Shank diameter0.4040
Shank length1.3750
Shank typeStraight-Cylindrical
Specification designationNAS
Specification numberNAS 907
Spiral typeRegular
StandardsDIN 338; NAS 907 Type J
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
