Chicago-Latrobe

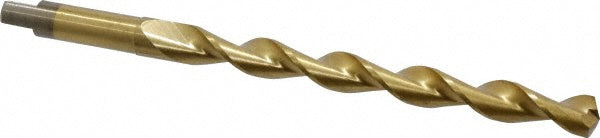

17/32" High Speed Steel Drill Bit, Coated, 135° point - Chicago-Latrobe 55266
MFR# 55266Series 120DHT
$65.19List $83.61
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size17/32
CoatingCoated
Description
The Chicago-Latrobe 55266 is a 17/32" High Speed Steel drill bit with a Coated finish, 135° point. 6 flute length. Series 120DHT.
Specifications
Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0012 in
Drill bit gradeHeavy-Duty
Drill bit size in17/32
Drill point angle degrees135
Flute length in6
Flute typeParabolic
Material applicationAlloy Steel; Aluminum; Carbon Steel; Non-Ferrous Metals
Overall length8
Point typeSplit
Shank diameter in1/2
Shank length2.0000
Shank typeTanged
Threaded shankNo
Tool applicationSelf-Centering
Tool materialHigh Speed Steel
Web configurationTapered
