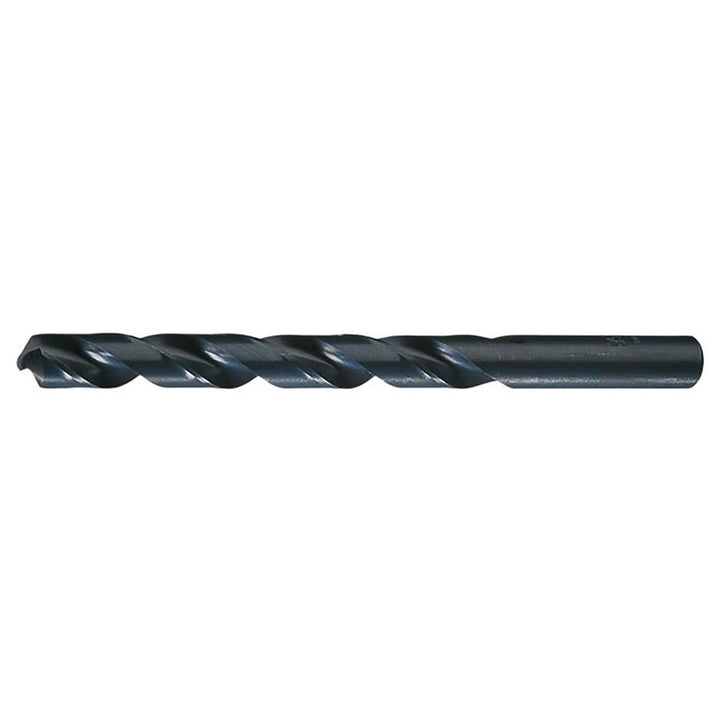

3/32" High Speed Steel Drill Bit, Oxide, 118° point - Chicago-Latrobe 57206

Chicago-Latrobe

3/32" High Speed Steel Drill Bit, Oxide, 118° point - Chicago-Latrobe 57206

MFR# 57206Series 150K

$1.62List $2.07 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size3/32
Flutes2

Description

The Chicago-Latrobe 57206 is a 3/32" High Speed Steel drill bit with a Oxide finish, 118° point. Suited for magnesium alloy. 1-1/4 flute length, 2-1/4 overall length. Series 150K.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0005 to 0.0000 in
Drill bit finish coatingOxide
Drill bit materialHigh Speed Steel
Drill bit size in3/32
Drill bit size range0.0500 - 0.1000
Drill point angle degrees118
Flute length in1-1/4
Flute typeSpiral
Number of flutes2
Overall length in2-1/4
Point typeSplit
Primary workpiece materialMagnesium Alloy
Shank diameter0.0938
Shank length1.0000
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
