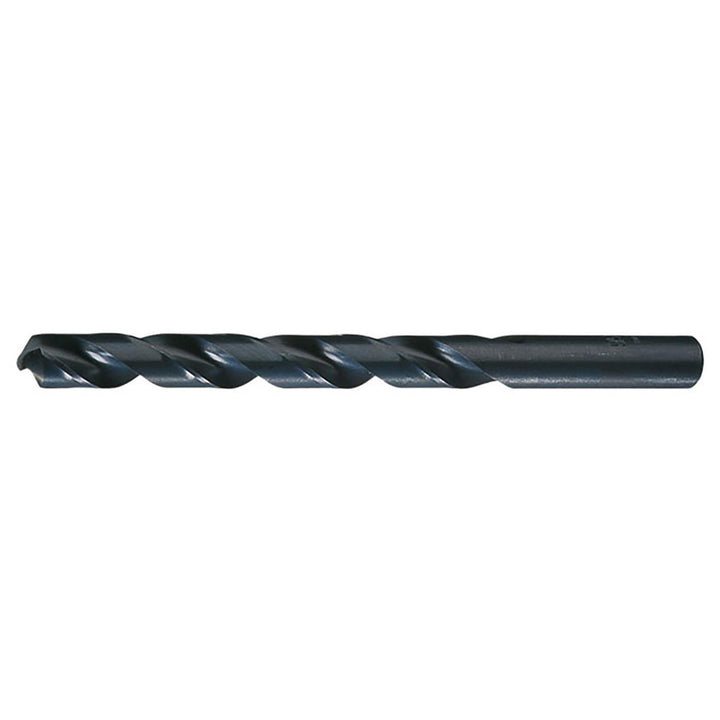

3/16" High Speed Steel Drill Bit, Oxide, 118° point - Chicago-Latrobe 57212

Chicago-Latrobe

3/16" High Speed Steel Drill Bit, Oxide, 118° point - Chicago-Latrobe 57212

MFR# 57212Series 150K

$2.76List $3.54 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size3/16
Flutes2

Description

The Chicago-Latrobe 57212 is a 3/16" High Speed Steel drill bit with a Oxide finish, 118° point. Suited for magnesium alloy. 2-5/16 flute length, 3-1/2 overall length. Series 150K.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0007 to 0.0000 in
Drill bit finish coatingOxide
Drill bit materialHigh Speed Steel
Drill bit size in3/16
Drill bit size range0.1500 - 0.2000
Drill point angle degrees118
Flute length in2-5/16
Flute typeSpiral
Number of flutes2
Overall length in3-1/2
Point typeSplit
Primary workpiece materialMagnesium Alloy
Shank diameter in3/16
Shank length1.1875
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
