#24 High Speed Steel Drill Bit, TiN, 118° point - Chicago-Latrobe 70124

Chicago-Latrobe

#24 High Speed Steel Drill Bit, TiN, 118° point - Chicago-Latrobe 70124

MFR# 70124Series 150T

$3.06List $3.93 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingTiN

Description

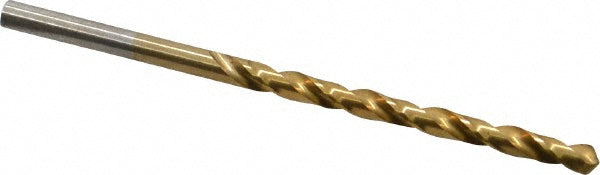

The Chicago-Latrobe 70124 is a #24 High Speed Steel drill bit with a TiN finish, 118° point. Suited for cast iron, steel. 2 flute length, 3-1/8 overall length. Series 150T.

Specifications

Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0007 to 0.0000 in
Drill bit finish coatingTitanium Nitride
Drill bit materialHigh Speed Steel
Drill bit size0.1520
Drill bit size range0.1500 - 0.2000
Drill bit size wire#24
Drill point angle degrees118
Flute length in2
Flute typeSpiral
Number of flutes2
Overall length in3-1/8
Point typeStandard
Primary workpiece materialCast Iron; Steel
Shank diameter0.1520
Shank length1.1250
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsDIN 338
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
