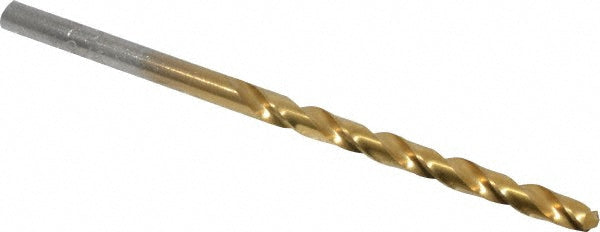

9/64" High Speed Steel Drill Bit, TiN, 118° point - Chicago-Latrobe 70209

Chicago-Latrobe

9/64" High Speed Steel Drill Bit, TiN, 118° point - Chicago-Latrobe 70209

MFR# 70209Series 150T

$3.14List $4.03 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size9/64
Flutes2
CoatingTiN

Description

The Chicago-Latrobe 70209 is a 9/64" High Speed Steel drill bit with a TiN finish, 118° point. Suited for cast iron, steel. 1-3/4 flute length, 2-7/8 overall length. Series 150T.

Specifications

Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0007 to 0.0000 in
Drill bit finish coatingTitanium Nitride
Drill bit gradeGeneral Purpose
Drill bit materialHigh Speed Steel
Drill bit size in9/64
Drill bit size range0.1000 - 0.1500
Drill point angle degrees118
Flute length in1-3/4
Flute typeSpiral
Number of flutes2
Overall length in2-7/8
Point typeStandard
Primary workpiece materialCast Iron; Steel
Shank diameter in9/64
Shank length1.1250
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsDIN 338
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
