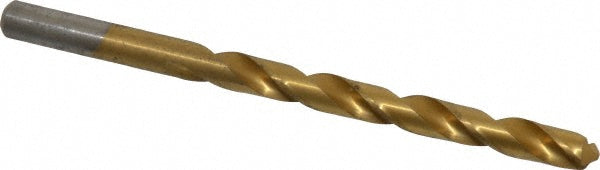

17/64" High Speed Steel Drill Bit, TiN, 118° point - Chicago-Latrobe 70217

Chicago-Latrobe

17/64" High Speed Steel Drill Bit, TiN, 118° point - Chicago-Latrobe 70217

MFR# 70217Series 150T

$7.19List $9.22 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size17/64
Flutes2
CoatingTiN

Description

The Chicago-Latrobe 70217 is a 17/64" High Speed Steel drill bit with a TiN finish, 118° point. Suited for cast iron, steel. 2-7/8 flute length, 4-1/8 overall length. Series 150T.

Specifications

Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0010 to 0.0000 in
Drill bit finish coatingTitanium Nitride
Drill bit gradeGeneral Purpose
Drill bit materialHigh Speed Steel
Drill bit size in17/64
Drill bit size range0.2500 - 0.3000
Drill point angle degrees118
Flute length in2-7/8
Flute typeSpiral
Number of flutes2
Overall length in4-1/8
Point typeStandard
Primary workpiece materialCast Iron; Steel
Shank diameter in17/64
Shank length1.2500
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsDIN 338
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
