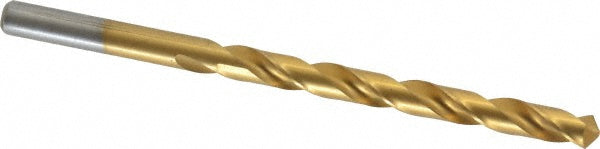

Letter B High Speed Steel Drill Bit, TiN, 118° point - Chicago-Latrobe 70302

Chicago-Latrobe

Letter B High Speed Steel Drill Bit, TiN, 118° point - Chicago-Latrobe 70302

MFR# 70302Series 150T

$5.30List $6.79 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingTiN

Description

The Chicago-Latrobe 70302 is a Letter B High Speed Steel drill bit with a TiN finish, 118° point. Suited for cast iron, steel. 2-3/4 flute length, 4 overall length. Series 150T.

Specifications

Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0007 to 0.0000 in
Drill bit finish coatingTitanium Nitride
Drill bit materialHigh Speed Steel
Drill bit size0.2380
Drill bit size letterB
Drill bit size range0.2000 - 0.2500
Drill point angle degrees118
Flute length in2-3/4
Flute typeSpiral
Number of flutes2
Overall length in4
Point typeStandard
Primary workpiece materialCast Iron; Steel
Shank diameter0.2380
Shank length1.2500
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsDIN 338
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
