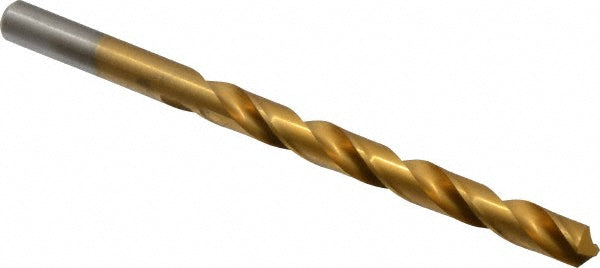

Letter M High Speed Steel Drill Bit, TiN, 118° point - Chicago-Latrobe 70313

Chicago-Latrobe

Letter M High Speed Steel Drill Bit, TiN, 118° point - Chicago-Latrobe 70313

MFR# 70313Series 150T

$9.19List $11.78 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingTiN

Description

The Chicago-Latrobe 70313 is a Letter M High Speed Steel drill bit with a TiN finish, 118° point. Suited for cast iron, steel. 3-1/16 flute length, 4-3/8 overall length. Series 150T.

Specifications

Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0010 to 0.0000 in
Drill bit finish coatingTitanium Nitride
Drill bit materialHigh Speed Steel
Drill bit size0.2950
Drill bit size letterM
Drill bit size range0.2500 - 0.3000
Drill point angle degrees118
Flute length in3-1/16
Flute typeSpiral
Number of flutes2
Overall length in4-3/8
Point typeStandard
Primary workpiece materialCast Iron; Steel
Shank diameter0.2950
Shank length1.3125
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsDIN 338
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
