Chicago-Latrobe

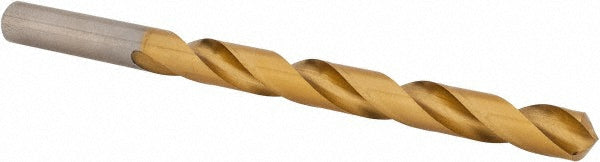

Letter R High Speed Steel Drill Bit, TiN, 118° point - Chicago-Latrobe 70318
MFR# 70318Series 150T
$10.49List $13.22
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiN
Description
The Chicago-Latrobe 70318 is a Letter R High Speed Steel drill bit with a TiN finish, 118° point. Suited for cast iron, steel. 3-7/16 flute length, 4-3/4 overall length. Series 150T.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0010 to 0.0000 in
Drill bit finish coatingTitanium Nitride
Drill bit materialHigh Speed Steel
Drill bit size0.3390
Drill bit size letterR
Drill bit size range0.3000 - 0.3500
Drill point angle degrees118
Flute length in3-7/16
Flute typeSpiral
Number of flutes2
Overall length in4-3/4
Point typeStandard
Primary workpiece materialCast Iron; Steel
Shank diameter0.3390
Shank length1.3125
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsDIN 338
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
