Chicago-Latrobe

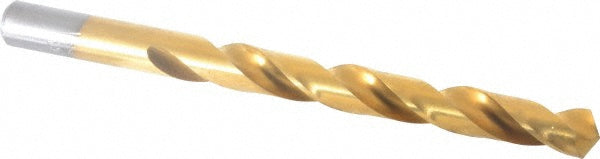

Letter X High Speed Steel Drill Bit, TiN, 118° point - Chicago-Latrobe 70324
MFR# 70324Series 150T
$15.48List $19.51
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiN
Description
The Chicago-Latrobe 70324 is a Letter X High Speed Steel drill bit with a TiN finish, 118° point. Suited for cast iron, steel. 3-3/4 flute length, 5-1/8 overall length. Series 150T.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.0010 to 0.0000 in
Drill bit finish coatingTitanium Nitride
Drill bit materialHigh Speed Steel
Drill bit size0.3970
Drill bit size letterX
Drill bit size range0.3500 - 0.4000
Drill point angle degrees118
Flute length in3-3/4
Flute typeSpiral
Number of flutes2
Overall length in5-1/8
Point typeStandard
Primary workpiece materialCast Iron; Steel
Shank diameter0.3970
Shank length1.3750
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsDIN 338
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
