Chicago-Latrobe

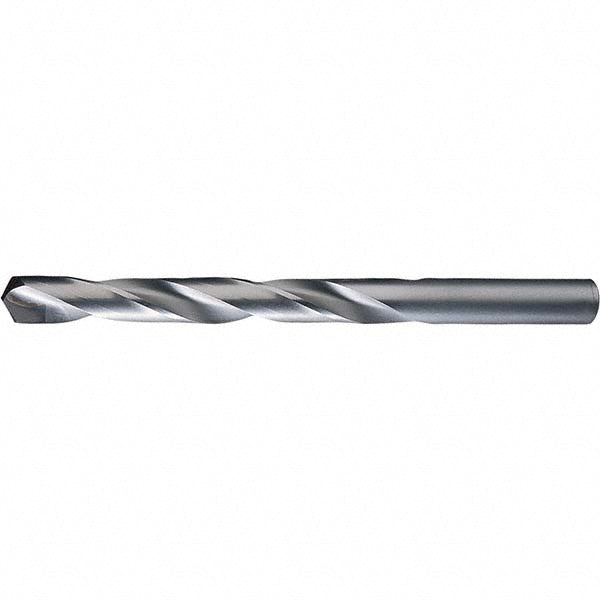

5/32" Carbide Tipped Drill Bit, 118° point - Chicago-Latrobe 77647
MFR# 77647Series CTD
$26.44List $33.91
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size5/32
Flutes2
Description
The Chicago-Latrobe 77647 is a 5/32" Carbide Tipped drill bit, 118° point. Suited for cast iron, non-ferrous metal. Series CTD.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0007 in
Drill bit gradeGeneral Purpose
Drill bit materialCarbide Tipped
Drill bit size in5/32
Drill bit size range0.1500 - 0.2000
Drill point angle degrees118
Flute length2.0000
Flute typeSpiral
Number of flutes2
Overall length3.1250
Point typeStandard
Primary workpiece materialCast Iron; Non-Ferrous Metal
Shank diameter in5/32
Shank length1.1252
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
