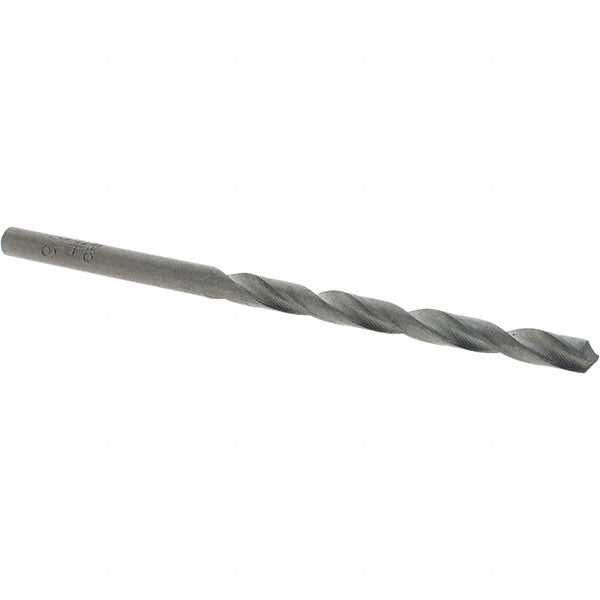

9/64" High Speed Steel Drill Bit, Oxide, 118° point - Cle-Force C68005

Cle-Force

9/64" High Speed Steel Drill Bit, Oxide, 118° point - Cle-Force C68005

MFR# C68005Series 1600

$1.18List $1.50 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size9/64
Flutes2

Description

The Cle-Force C68005 is a 9/64" High Speed Steel drill bit with a Oxide finish, 118° point. Suited for aluminum. 1-3/4 flute length, 2-7/8 overall length. Series 1600.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0007 in
Drill bit finish coatingOxide
Drill bit gradeGeneral Purpose
Drill bit materialHigh Speed Steel
Drill bit size in9/64
Drill bit size range0.1000 - 0.1500
Drill point angle degrees118
Flute length in1-3/4
Flute typeSpiral
Number of flutes2
Overall length in2-7/8
Point typeStandard
Primary workpiece materialAluminum
Shank diameter in9/64
Shank length1.1248
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsASME B94.11M; DIN 338
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
