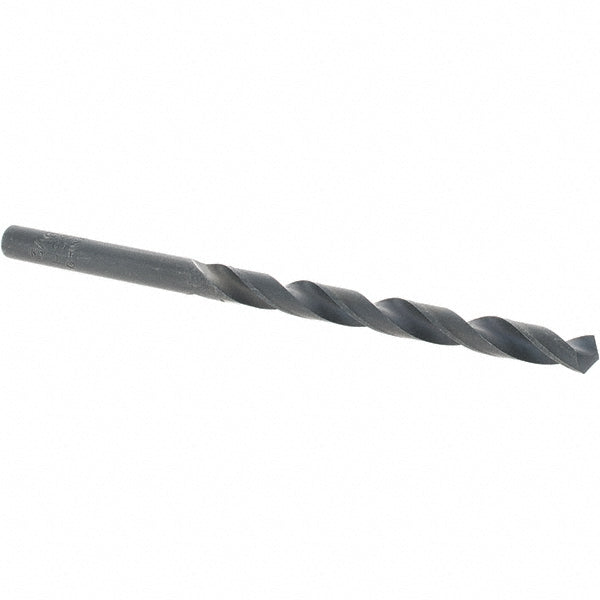

3/16" High Speed Steel Drill Bit, Oxide, 118° point - Cle-Force C68008

Cle-Force

3/16" High Speed Steel Drill Bit, Oxide, 118° point - Cle-Force C68008

MFR# C68008Series 1600

$1.47List $1.89 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size3/16
Flutes2

Description

The Cle-Force C68008 is a 3/16" High Speed Steel drill bit with a Oxide finish, 118° point. Suited for aluminum. 2-5/16 flute length, 3-1/2 overall length. Series 1600.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0007 in
Drill bit finish coatingOxide
Drill bit gradeGeneral Purpose
Drill bit materialHigh Speed Steel
Drill bit size in3/16
Drill bit size range0.1500 - 0.2000
Drill point angle degrees118
Flute length in2-5/16
Flute typeSpiral
Number of flutes2
Overall length in3-1/2
Point typeStandard
Primary workpiece materialAluminum
Shank diameter in3/16
Shank length1.1874
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsASME B94.11M; DIN 338
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
