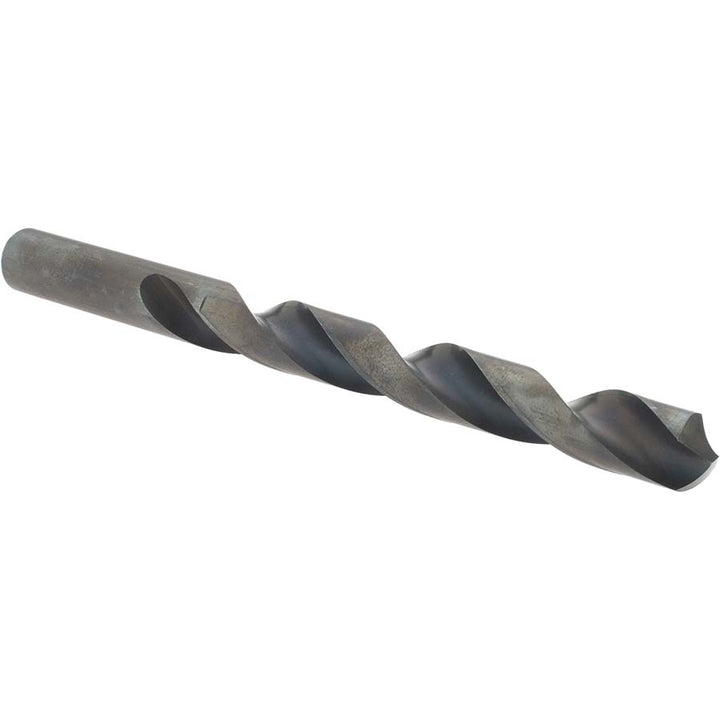

29/64" High Speed Steel Drill Bit, Oxide, 118° point - Cle-Force C68025

Cle-Force

29/64" High Speed Steel Drill Bit, Oxide, 118° point - Cle-Force C68025

MFR# C68025Series 1600

$6.90List $8.86 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size29/64
Flutes2

Description

The Cle-Force C68025 is a 29/64" High Speed Steel drill bit with a Oxide finish, 118° point. Suited for aluminum. 4-3/16 flute length, 5-5/8 overall length. Series 1600.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit finish coatingOxide
Drill bit gradeGeneral Purpose
Drill bit materialHigh Speed Steel
Drill bit size in29/64
Drill bit size range0.4000 - 0.5000
Drill point angle degrees118
Flute length in4-3/16
Flute typeSpiral
Number of flutes2
Overall length in5-5/8
Point typeStandard
Primary workpiece materialAluminum
Shank diameter in29/64
Shank length1.4378
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsASME B94.11M; DIN 338
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
