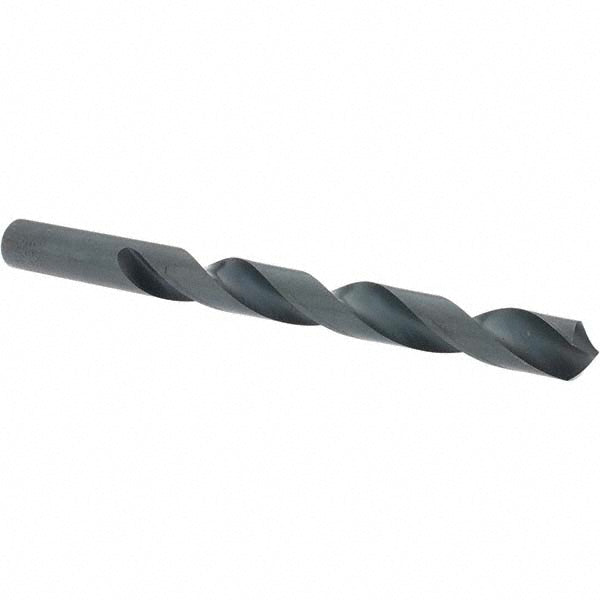

31/64" High Speed Steel Drill Bit, Oxide, 118° point - Cle-Force C68027

Cle-Force

31/64" High Speed Steel Drill Bit, Oxide, 118° point - Cle-Force C68027

MFR# C68027Series 1600

$8.09List $10.37 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size31/64
Flutes2

Description

The Cle-Force C68027 is a 31/64" High Speed Steel drill bit with a Oxide finish, 118° point. Suited for aluminum. 4-3/8 flute length, 5-7/8 overall length. Series 1600.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit finish coatingOxide
Drill bit gradeGeneral Purpose
Drill bit materialHigh Speed Steel
Drill bit size in31/64
Drill bit size range0.4000 - 0.5000
Drill point angle degrees118
Flute length in4-3/8
Flute typeSpiral
Number of flutes2
Overall length in5-7/8
Point typeStandard
Primary workpiece materialAluminum
Shank diameter in31/64
Shank length1.4996
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsASME B94.11M; DIN 338
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
