Cle-Force

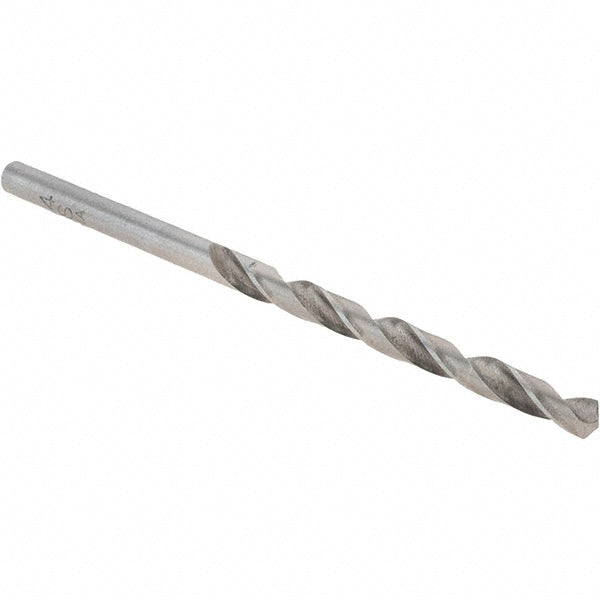

9/64" High Speed Steel Drill Bit, 118° point - Cle-Force C68119
MFR# C68119Series 1601
$1.17List $1.48
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 12 — minimum order 12
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size9/64
Flutes2
Description
The Cle-Force C68119 is a 9/64" High Speed Steel drill bit, 118° point. Suited for aluminum. 1-3/4 flute length, 2-7/8 overall length. Series 1601.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0007 in
Drill bit finish coatingBright/Uncoated
Drill bit gradeGeneral Purpose
Drill bit materialHigh Speed Steel
Drill bit size in9/64
Drill bit size range0.1000 - 0.1500
Drill point angle degrees118
Flute length in1-3/4
Flute typeSpiral
Number of flutes2
Overall length in2-7/8
Point typeStandard
Primary workpiece materialAluminum
Shank diameter in9/64
Shank length1.1248
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsASME B94.11M; DIN 338
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
