Cle-Force
11/64" HSS Drill Bit, 118° point - Cle-Force C68121
MFR# C68121Series 1601
$1.22List $1.57
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size11/64
Flutes2
Description

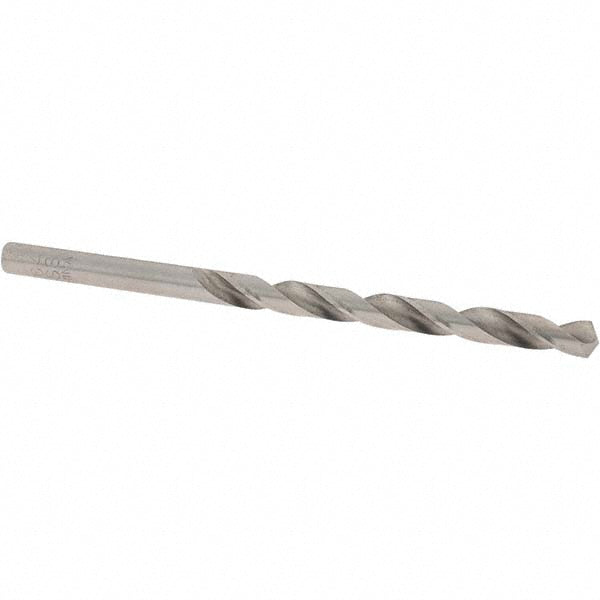

The Cle-Force C68121 is a 11/64" HSS drill bit, 118° point. Suited for aluminum & non-ferrous. 2-1/8 flute length, 3-1/4 overall length. Series 1601.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0007 in
Drill bit gradeMaintenance
Drill bit materialHSS
Drill bit size in11/64
Drill bit size range0.1500 - 0.2000
Drill point angle degrees118
Flute length in2-1/8
Flute typeRegular Spiral
Number of flutes2
Overall length in3-1/4
Point typeStandard
Primary workpiece materialAluminum & Non-Ferrous
Shank diameter in11/64
Shank length1.1252
Shank typeStraight
Spiral typeRegular
StandardsASME B94.11M; DIN 338
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
