Cle-Force

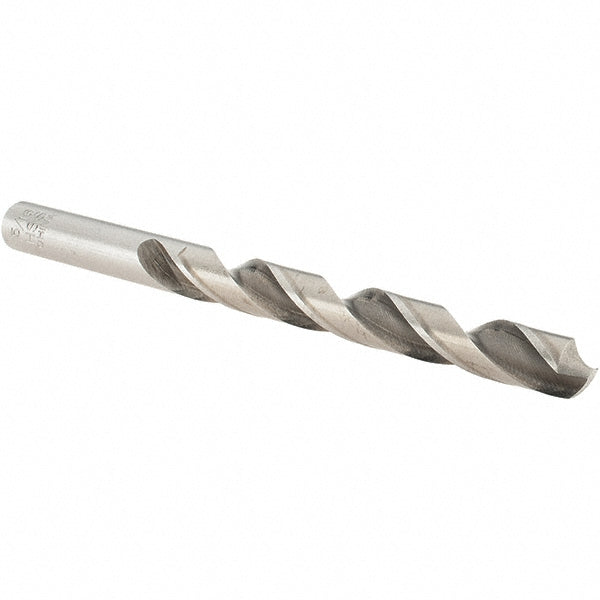

5/16" High Speed Steel Drill Bit, 118° point - Cle-Force C68130
MFR# C68130Series 1601
$3.21List $4.11
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size5/16
Flutes2
Description
The Cle-Force C68130 is a 5/16" High Speed Steel drill bit, 118° point. Suited for aluminum. 3-3/16 flute length, 4-1/2 overall length. Series 1601.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit finish coatingBright/Uncoated
Drill bit gradeGeneral Purpose
Drill bit materialHigh Speed Steel
Drill bit size in5/16
Drill bit size range0.3000 - 0.3500
Drill point angle degrees118
Flute length in3-3/16
Flute typeSpiral
Number of flutes2
Overall length in4-1/2
Point typeStandard
Primary workpiece materialAluminum
Shank diameter in5/16
Shank length1.3126
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsASME B94.11M; DIN 338
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
Can't find your exact tool?Send us a part number — we'll cross-reference it.
Dull tools?Regrinding extends tool life and saves cost.
Alternate & equivalent tools
Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
Spec-matched alternates load as the catalog fills in. Meanwhile, browse the End Mills collection and filter by diameter, flutes & length of cut.
