Cle-Force

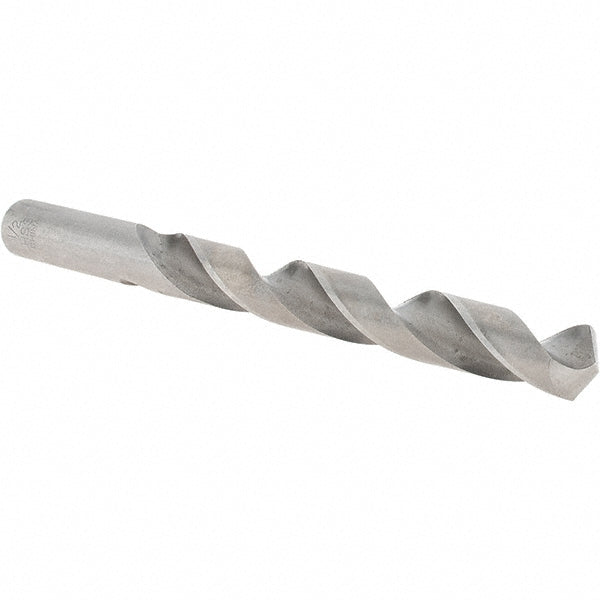

1/2" High Speed Steel Drill Bit, 118° point - Cle-Force C68142
MFR# C68142Series 1601
$8.44List $10.83
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size1/2
Flutes2
Description
The Cle-Force C68142 is a 1/2" High Speed Steel drill bit, 118° point. Suited for aluminum. 4-1/2 flute length, 6 overall length. Series 1601.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit finish coatingBright/Uncoated
Drill bit gradeGeneral Purpose
Drill bit materialHigh Speed Steel
Drill bit size in1/2
Drill bit size range0.5000 - 0.6500
Drill point angle degrees118
Flute length in4-1/2
Flute typeSpiral
Number of flutes2
Overall length in6
Point typeStandard
Primary workpiece materialAluminum
Shank diameter in1/2
Shank length1.5000
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsASME B94.11M; DIN 338
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
