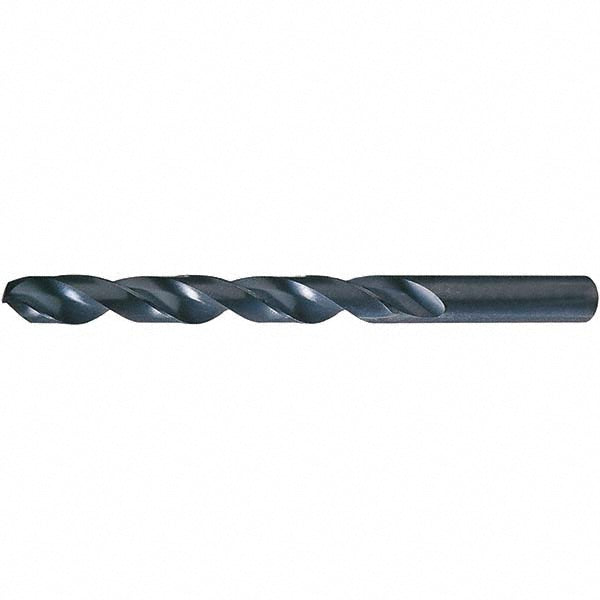

Letter Q HSS Drill Bit, Oxide, 135° point - Cle-Force C68273

Cle-Force

Letter Q HSS Drill Bit, Oxide, 135° point - Cle-Force C68273

MFR# C68273Series 1602

$4.86List $6.23 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingOxide

Description

The Cle-Force C68273 is a Letter Q HSS drill bit with a Oxide finish, 135° point. Suited for cast iron, steel. 3-7/16 flute length, 4-3/4 overall length. Series 1602.

Specifications

Coating finishOxide
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit gradeHeavy Duty
Drill bit materialHSS
Drill bit size0.3320
Drill bit size letterQ
Drill bit size range0.3000 - 0.3500
Drill point angle degrees135
Flute length in3-7/16
Flute typeRegular Spiral
Number of flutes2
Overall length in4-3/4
Point typeSplit Point
Primary workpiece materialCast Iron; Steel
Shank diameter0.3320
Shank length1.3126
Shank typeStraight
Spiral typeRegular
StandardsASME B94.11M; DIN 338
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
