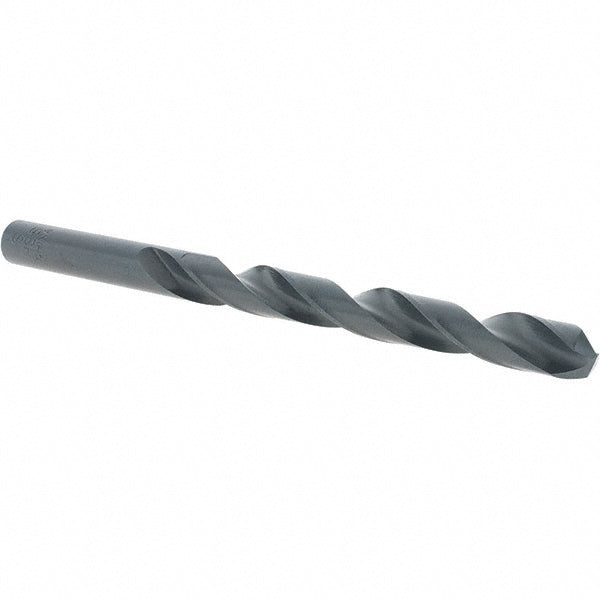

Letter S HSS Drill Bit, Oxide, 135° point - Cle-Force C68275

Cle-Force

Letter S HSS Drill Bit, Oxide, 135° point - Cle-Force C68275

MFR# C68275Series 1602

$5.73List $7.35 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingOxide

Description

The Cle-Force C68275 is a Letter S HSS drill bit with a Oxide finish, 135° point. Suited for cast iron, steel. 3-1/2 flute length, 4-7/8 overall length. Series 1602.

Specifications

Coating finishOxide
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit gradeHeavy Duty
Drill bit materialHSS
Drill bit size0.3480
Drill bit size letterS
Drill bit size range0.3000 - 0.3500
Drill point angle degrees135
Flute length in3-1/2
Flute typeRegular Spiral
Number of flutes2
Overall length in4-7/8
Point typeSplit Point
Primary workpiece materialCast Iron; Steel
Shank diameter0.3480
Shank length1.3748
Shank typeStraight
Spiral typeRegular
StandardsASME B94.11M; DIN 338
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
