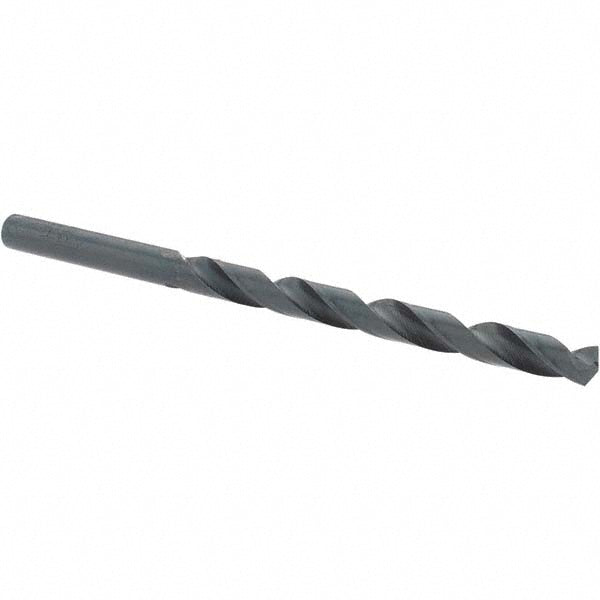

#7 High Speed Steel Drill Bit, Oxide, 135° point - Cle-Force C68289

Cle-Force

#7 High Speed Steel Drill Bit, Oxide, 135° point - Cle-Force C68289

MFR# C68289Series 1602

$2.27List $2.91 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2

Description

The Cle-Force C68289 is a #7 High Speed Steel drill bit with a Oxide finish, 135° point. Suited for cast iron, steel. 2-7/16 flute length, 3-5/8 overall length. Series 1602.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0007 in
Drill bit finish coatingOxide
Drill bit gradeHeavy Duty
Drill bit materialHigh Speed Steel
Drill bit size0.2010
Drill bit size range0.2000 - 0.2500
Drill bit size wire#7
Drill point angle degrees135
Flute length in2-7/16
Flute typeSpiral
Number of flutes2
Overall length in3-5/8
Point typeSplit
Primary workpiece materialCast Iron; Steel
Shank diameter0.2010
Shank length1.1874
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsASME B94.11M; DIN 338
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
