Cle-Force

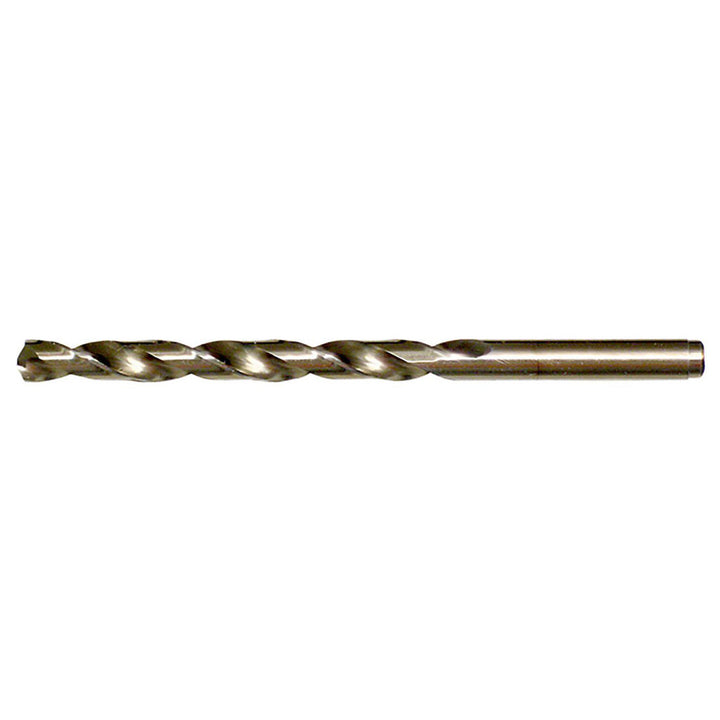

13/32" Cobalt Drill Bit, Gold, 135° point - Cle-Force C68369
MFR# C68369Series 1603
$12.32List $15.54
Save 20%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
Sold in multiples of 6 — minimum order 6
Check price & lead time first →- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size13/32
Flutes2
Description
The Cle-Force C68369 is a 13/32" Cobalt drill bit with a Gold finish, 135° point. Suited for aluminum, superalloy, titanium. 3-7/8 flute length, 5-1/4 overall length. Series 1603.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit finish coatingGold
Drill bit gradeHeavy Duty
Drill bit materialCobalt
Drill bit size in13/32
Drill bit size range0.4000 - 0.5000
Drill point angle degrees135
Flute length in3-7/8
Flute typeSpiral
Number of flutes2
Overall length in5-1/4
Point typeSplit
Primary workpiece materialAluminum; Superalloy; Titanium
Shank diameter in13/32
Shank length1.3752
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsASME B94.11M
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
