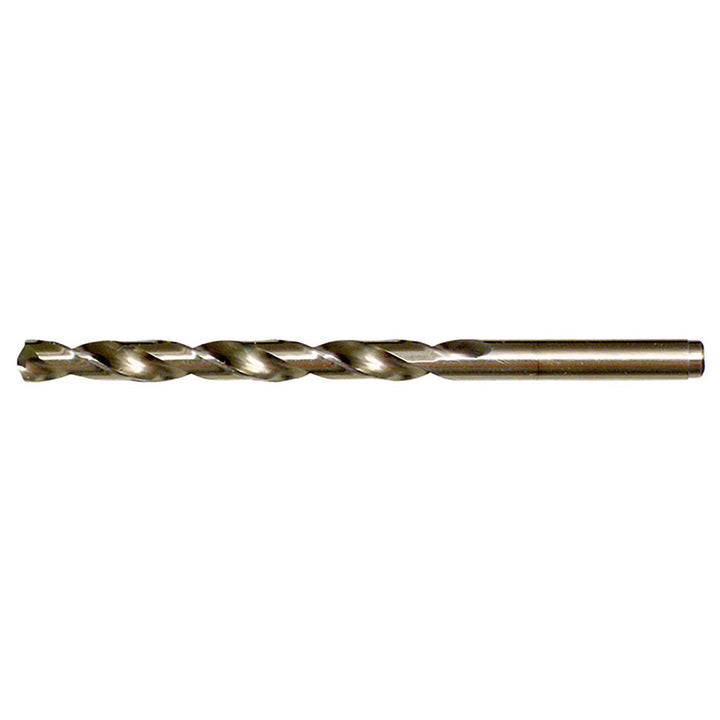

1/2" Cobalt Drill Bit, Gold, 135° point - Cle-Force C68375

Cle-Force

1/2" Cobalt Drill Bit, Gold, 135° point - Cle-Force C68375

MFR# C68375Series 1603

$17.99List $23.07 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size1/2
Flutes2

Description

The Cle-Force C68375 is a 1/2" Cobalt drill bit with a Gold finish, 135° point. Suited for aluminum, superalloy, titanium. 4-1/2 flute length, 6 overall length. Series 1603.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit finish coatingGold
Drill bit gradeHeavy Duty
Drill bit materialCobalt
Drill bit size in1/2
Drill bit size range0.5000 - 0.6500
Drill point angle degrees135
Flute length in4-1/2
Flute typeSpiral
Number of flutes2
Overall length in6
Point typeSplit
Primary workpiece materialAluminum; Superalloy; Titanium
Shank diameter in1/2
Shank length1.5000
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsASME B94.11M
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
