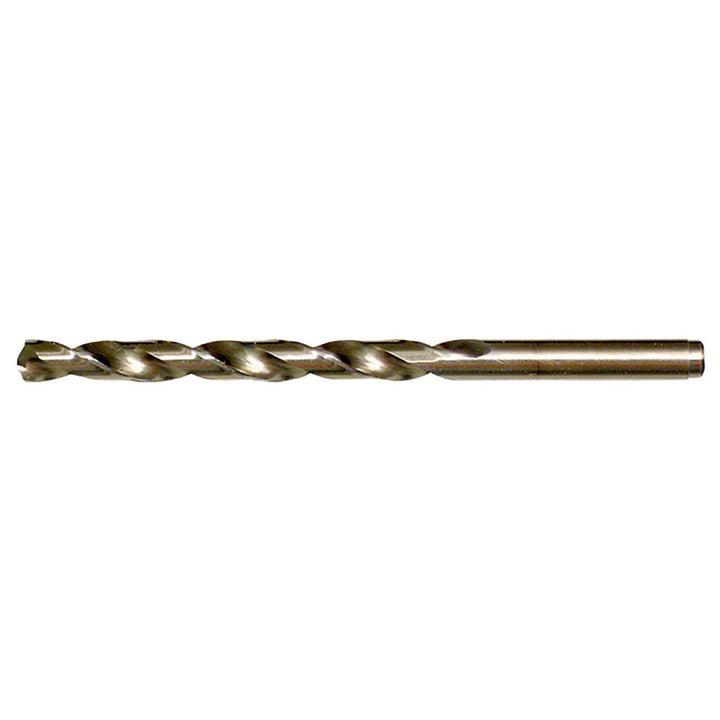

Letter R Cobalt Drill Bit, Gold, 135° point - Cle-Force C68392

Cle-Force

Letter R Cobalt Drill Bit, Gold, 135° point - Cle-Force C68392

MFR# C68392Series 1603

$9.39List $12.04 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2

Description

The Cle-Force C68392 is a Letter R Cobalt drill bit with a Gold finish, 135° point. Suited for aluminum, superalloy, titanium. 3-7/16 flute length, 4-3/4 overall length. Series 1603.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit finish coatingGold
Drill bit gradeHeavy Duty
Drill bit materialCobalt
Drill bit size0.3390
Drill bit size letterR
Drill bit size range0.3000 - 0.3500
Drill point angle degrees135
Flute length in3-7/16
Flute typeSpiral
Number of flutes2
Overall length in4-3/4
Point typeSplit
Primary workpiece materialAluminum; Superalloy; Titanium
Shank diameter0.3390
Shank length1.3126
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsASME B94.11M
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
