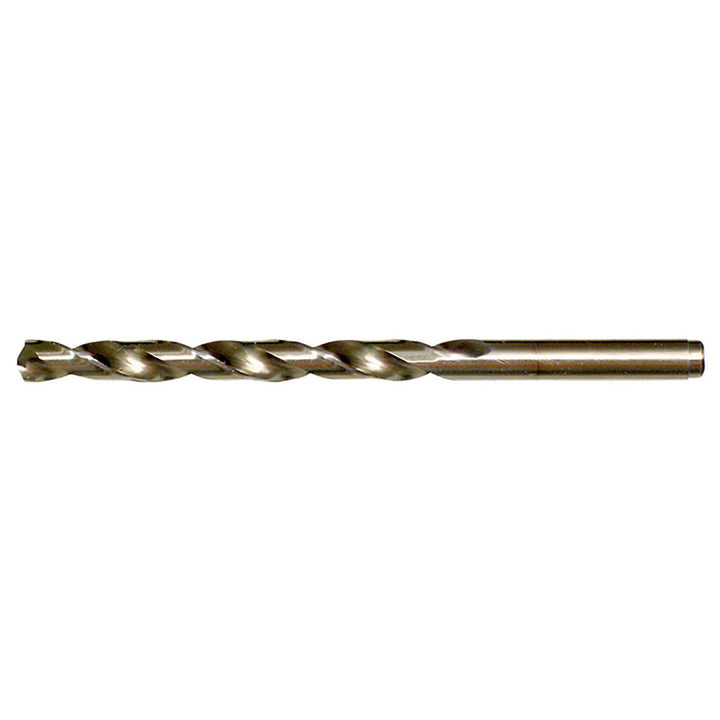

Letter X Cobalt Drill Bit, Gold, 135° point - Cle-Force C68398

Cle-Force

Letter X Cobalt Drill Bit, Gold, 135° point - Cle-Force C68398

MFR# C68398Series 1603

$12.76List $16.36 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2

Description

The Cle-Force C68398 is a Letter X Cobalt drill bit with a Gold finish, 135° point. Suited for aluminum, superalloy, titanium. 3-3/4 flute length, 5-1/8 overall length. Series 1603.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0010 in
Drill bit finish coatingGold
Drill bit gradeHeavy Duty
Drill bit materialCobalt
Drill bit size0.3970
Drill bit size letterX
Drill bit size range0.3500 - 0.4000
Drill point angle degrees135
Flute length in3-3/4
Flute typeSpiral
Number of flutes2
Overall length in5-1/8
Point typeSplit
Primary workpiece materialAluminum; Superalloy; Titanium
Shank diameter0.3970
Shank length1.3748
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsASME B94.11M
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
