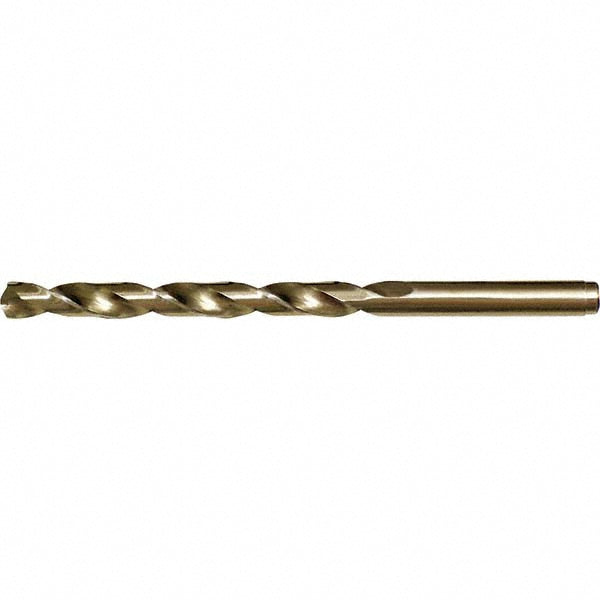

#11 Cobalt Drill Bit, Gold, 135° point - Cle-Force C68411
MFR# C68411Series 1603
$3.64List $4.67
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Cle-Force C68411 is a #11 Cobalt drill bit with a Gold finish, 135° point. Suited for aluminum, superalloy, titanium. 2-5/16 flute length, 3-1/2 overall length. Series 1603.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0007 in
Drill bit finish coatingGold
Drill bit gradeHeavy Duty
Drill bit materialCobalt
Drill bit size0.1910
Drill bit size range0.1500 - 0.2000
Drill bit size wire#11
Drill point angle degrees135
Flute length in2-5/16
Flute typeSpiral
Number of flutes2
Overall length in3-1/2
Point typeSplit
Primary workpiece materialAluminum; Superalloy; Titanium
Shank diameter0.1910
Shank length1.1874
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsASME B94.11M
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
