Cle-Force

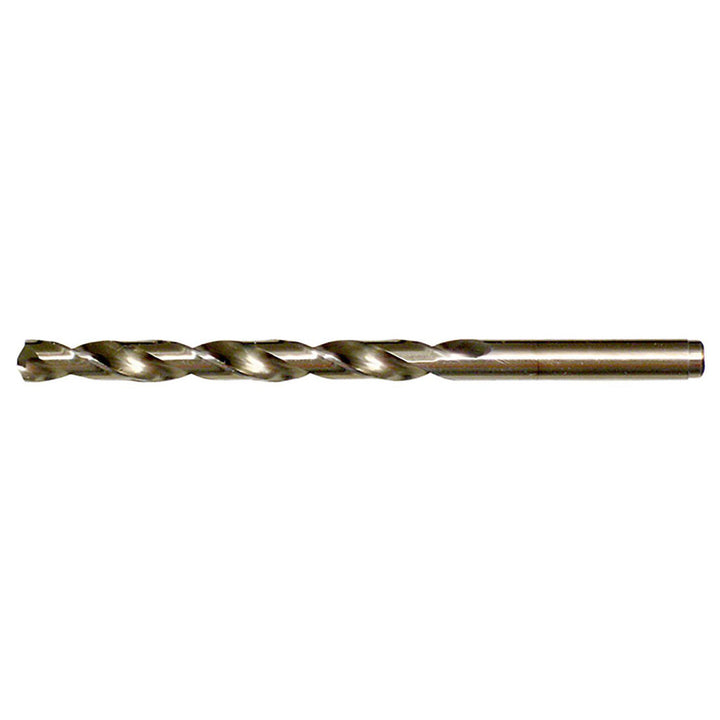

#16 Cobalt Drill Bit, Gold, 135° point - Cle-Force C68416
MFR# C68416Series 1603
$3.42List $4.30
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 12 — minimum order 12
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Cle-Force C68416 is a #16 Cobalt drill bit with a Gold finish, 135° point. Suited for aluminum, superalloy, titanium. 2-3/16 flute length, 3-3/8 overall length. Series 1603.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0007 in
Drill bit finish coatingGold
Drill bit gradeHeavy Duty
Drill bit materialCobalt
Drill bit size0.1770
Drill bit size range0.1500 - 0.2000
Drill bit size wire#16
Drill point angle degrees135
Flute length in2-3/16
Flute typeSpiral
Number of flutes2
Overall length in3-3/8
Point typeSplit
Primary workpiece materialAluminum; Superalloy; Titanium
Shank diameter0.1770
Shank length1.1874
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsASME B94.11M
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
Can't find your exact tool?Send us a part number — we'll cross-reference it.
Dull tools?Regrinding extends tool life and saves cost.
Alternate & equivalent tools
Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
Spec-matched alternates load as the catalog fills in. Meanwhile, browse the End Mills collection and filter by diameter, flutes & length of cut.
