#29 Cobalt Drill Bit, Gold, 135° point - Cle-Force C68429

Cle-Force

#29 Cobalt Drill Bit, Gold, 135° point - Cle-Force C68429

MFR# C68429Series 1603

$2.45List $3.15 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2

Description

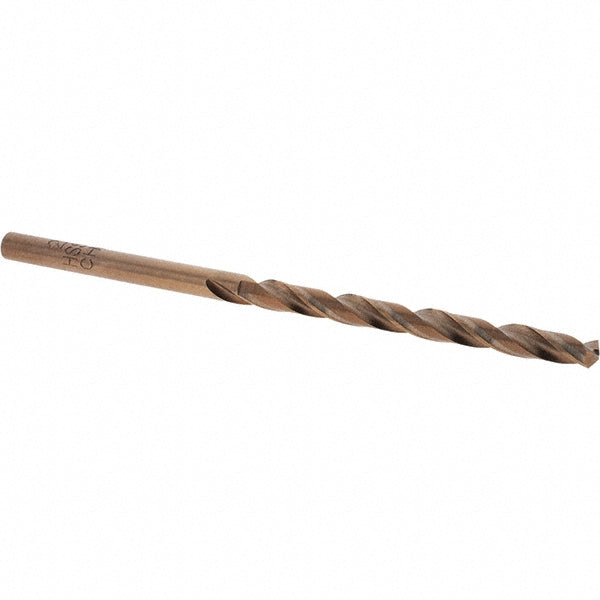

The Cle-Force C68429 is a #29 Cobalt drill bit with a Gold finish, 135° point. Suited for aluminum, superalloy, titanium. 1-3/4 flute length, 2-7/8 overall length. Series 1603.

Specifications

Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to -0.0007 in
Drill bit finish coatingGold
Drill bit gradeHeavy Duty
Drill bit materialCobalt
Drill bit size0.1360
Drill bit size range0.1000 - 0.1500
Drill bit size wire#29
Drill point angle degrees135
Flute length in1-3/4
Flute typeSpiral
Number of flutes2
Overall length in2-7/8
Point typeSplit
Primary workpiece materialAluminum; Superalloy; Titanium
Shank diameter0.1360
Shank length1.1248
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsASME B94.11M
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

Spec-matched alternates load as the catalog fills in. Meanwhile, browse the End Mills collection and filter by diameter, flutes & length of cut.
